SR Latch

SR Latch stands for Set-Reset Latch. It is a 1-bit memory component

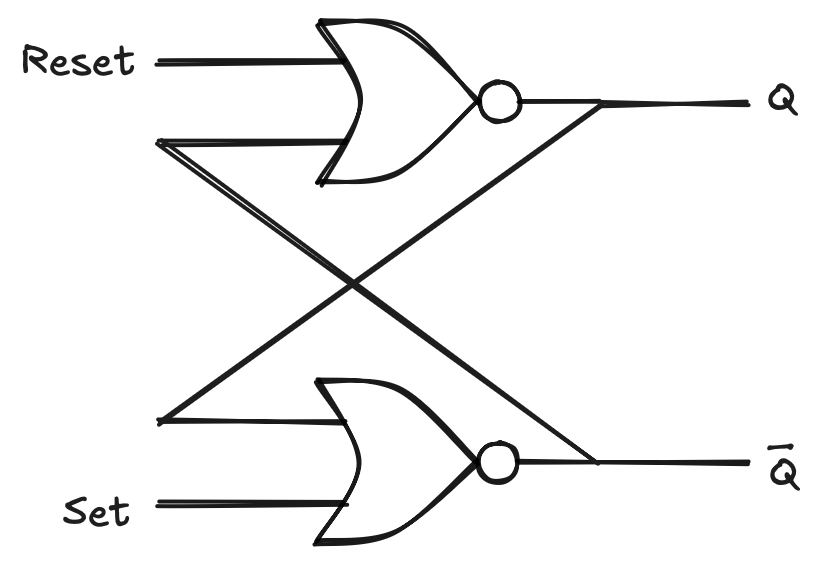

  • It has two NOR gates that are linked up as above
  • If S goes high, Q is also high and stay high until R goes high
  • If R goes high then Q goes low and stays low until S goes high
  • $\bar{Q}$ is always the opposite of $Q$
